Magnesium ZE41A
Magnesium alloy ZE41A is a high-performance, heat-treated magnesium alloy that is commonly used in applications requiring superior strength, good corrosion resistance, and lightweight properties. It is part of the ZE series of magnesium alloys, which are alloyed primarily with zinc, with minor additions of other elements like rare earth metals to improve its mechanical and thermal properties. ZE41A is especially suited for the aerospace and automotive industries, where its combination of lightness and strength is highly valued.
Miji magnesium provide ZE41A magnesium alloy in various forms, including plates, bars, profiles, and machined parts, and we can also custom-produce magnesium alloy products according to your drawings. If you have any requirement, please contact us,email: sales@mijimg.com.
- Physical Properties of ZE41A Magnesium Alloy
- Chemical Composition of ZE41A Magnesium Alloy
- Mechanical Properties of ZE41A Magnesium Alloy
Here is a table showcasing the physical properties of ZE41A magnesium alloy:
| Property | Value |
|---|---|
| Density | 1.78 g/cm³ |
| Melting Point | 585 – 610°C |
| Young’s Modulus | 45 GPa |
| Tensile Strength | 280 – 350 MPa |
| Yield Strength | 200 – 250 MPa |
| Elongation | 3 – 7% |
| Thermal Conductivity | 140 W/m·K |
| Specific Heat Capacity | 1.02 J/g·K |
| Electrical Resistivity | 0.065 µΩ·m |
| Coefficient of Thermal Expansion | 26.5 x 10⁻⁶ /°C |
Here is a table showcasing the chemical composition of ZE41A magnesium alloy:
| Element | Percentage |
|---|---|
| Magnesium (Mg) | ≈ 90% |
| Zinc (Zn) | 4% |
| Rare Earth Elements (RE) | 1% |
| Manganese (Mn) | ≤ 0.5% |
| Silicon (Si) | ≤ 0.1% |
| Copper (Cu) | ≤ 0.05% |
| Iron (Fe) | ≤ 0.003% |
| Nickel (Ni) | ≤ 0.005% |
| Chromium (Cr) | ≤ 0.005% |
| Others | ≤ 0.1% |
Here is a table showcasing the mechanical properties of ZE41A magnesium alloy:
| Property | Value |
|---|---|
| Tensile Strength | 280 – 350 MPa |
| Yield Strength | 200 – 250 MPa |
| Elongation | 3 – 7% |
| Hardness (Brinell) | 70 – 85 HB |
| Compressive Strength | 350 MPa |
| Shear Strength | 150 – 200 MPa |
| Modulus of Elasticity | 45 GPa |
| Poisson’s Ratio | 0.35 |
| Fatigue Strength | 150 MPa (at 10⁶ cycles) |
| Impact Toughness | 5 – 7 kJ/m² |

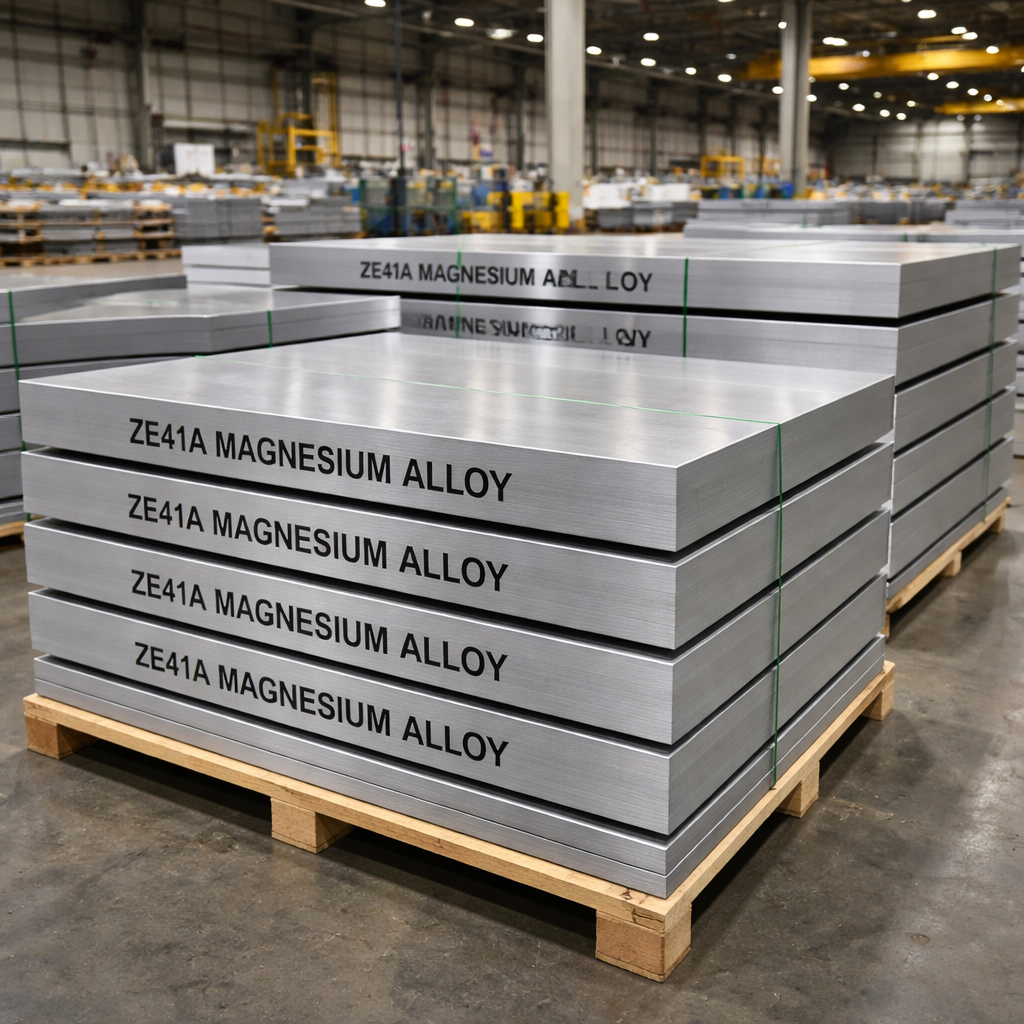

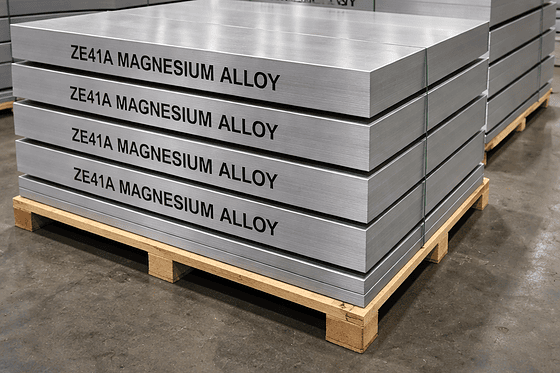

ZE41A magnesium plate, high-strength, lightweight, and corrosion-resistant, ideal for aerospace, automotive, and structural applications.
high-strength, lightweight, and corrosion-resistant, ideal for aerospace, automotive, and precision structural applications.automotive parts.

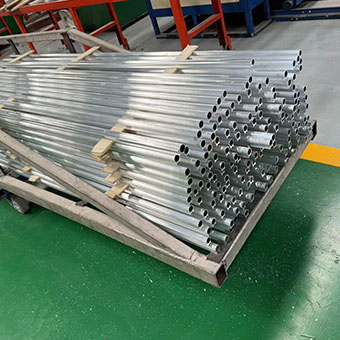

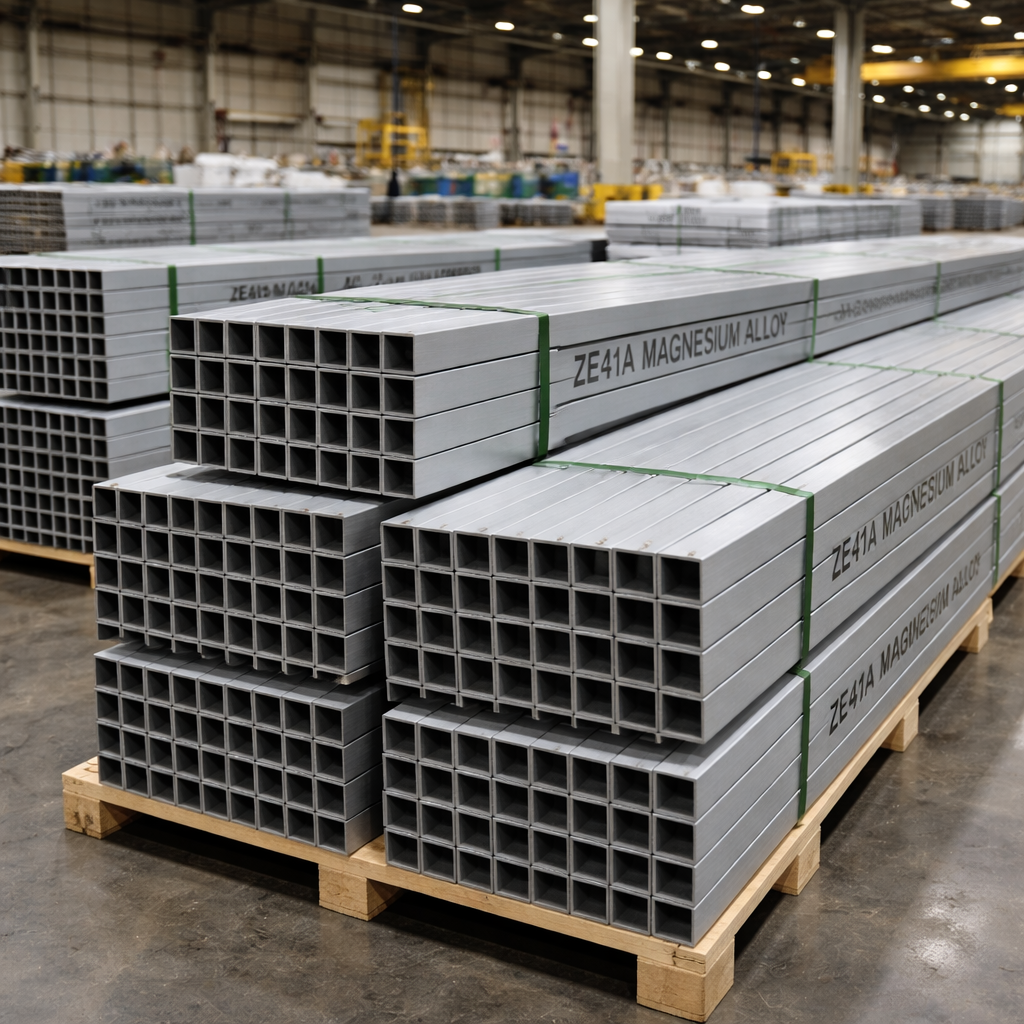

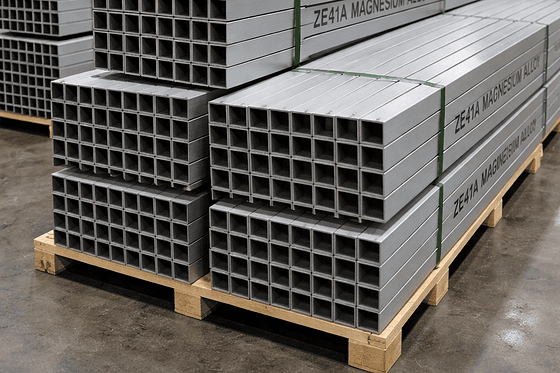

ZE41A is a high-performance rare-earth magnesium alloy tube with excellent heat resistance, strength, and stability, used in aerospace and automotive systems.
ZE41A is a high-performance rare-earth magnesium alloy tube with excellent heat resistance, strength, and stability, used in aerospace and automotive systems.
Features of Grade
At 23% the density of steel and 67% of aluminum, magnesium is the lightest structural metal.
Magnesium offers great weldability, supporting various methods like gas, argon arc, and TIG.
Excellent EMI shielding makes magnesium ideal for electromagnetic-sensitive housings.
Its low elastic modulus enables high energy absorption for superior noise and vibration damping.
As a safe, recyclable metal, magnesium reduces costs while promoting resource sustainability.
Brittle at room temperature due to HCP structure, magnesium excels in molding at 200-400°C.
Effectively addresses the heat dissipation challenges of highly integrated electronic devices.
Magnesium’s machinability enables faster cutting and tighter tolerances for complex components
Custom Magnesium Alloy Grades, Shapes, and Sizes Supplier
10 years of magnesium alloy product development and production supplier, we can customize the products according to the customer's performance needs or product application area needs. Magnesium plate we have provided customers with large size plate of 2400*7500mm, which meets the needs of many customers with large plate. At the same time, we can also provide etched plates, which also solves the needs of many customers in the printing industry. Same We can also provide seamless tubes, high performance plates and other products to military customers. You You Same Same You Customers' high quality demand is the driving force for our R&D and production, if you have any demand about magnesium alloy, please contact us: Email: sales@mijimg.com
whatsapp:+86 13761190361
How is magnesium alloy surface treated?
For the surface of magnesium alloy material is easy to deteriorate the problem, magnesium alloy products will be finalized after the final surface treatment, at present commonly used (phosphating, passivation), spraying, vacuum transfer printing, anodic oxidation, micro-arc oxidation and other treatment methods. Magnesium alloy micro-arc oxidation treatment is currently a common surface treatment in the rail transit industry. Our company has the capacity of micro-arc oxidation treatment of ultra-long profiles (>5 meters) and acid-resistant micro-arc oxidation treatment. Widely used in military, aerospace, machinery, electronics and rail transportation and other fields.
Miji Magnesium Delivery
The factory has a large number of AZ31B, AZ80A, AZ91D and ZK60A grades in stock, the delivery time can be controlled by Delivery time: 3-10days, the general sending is fumigated wooden box packaging, which can effectively prevent the product from deformation and scratches.
Miji magnesium can send FedEx/UPS/DHL courier, also can be transported by sea, to help you save the trouble of transportation.
At present, we can do EXW, FOB, CIF and DDU services according to your needs, one-stop solution for all your import problems.
Miji magnesium Service
After the customer receives the goods, please check the quantity and tolerance of the product, the surface and other product details in a timely manner, if there is a quality problem, please notify us within 30 days, we will make up the product to send, return and exchange and other after-sales service. At the same time there are 7/24 hours customer service online to answer any technical questions and sales problems you have.
Applicantion Of Magnesium ZE41A
