| Property | Value | Unit | Notes |
| Density | 1.80 | g/cc | Lightweight alloy |
| Melting Point | 585 – 650 | C | Alloy dependent |
| Thermal Conductivity | 130 | W/m-K | At 25 C |
| Specific Heat | 1.02 | J/g-K | At 25 C |
| Electrical Resistivity | 43 | nOhm-m | Approximate |
| Coefficient of Thermal Expansion | 26 | ppm/C | At 25 – 100 C |
| Young’s Modulus | 45 | GPa | Elastic modulus |
Magnesium AM50
Why Procurement Teams Upgrade to AM50:
Chasing raw rigidity on paper causes brittle cracks under dynamic stress. When safety is critical, you need a metal that flexes smoothly without splitting.
- Stop Brittle Failure: Balanced 4.5% aluminum blocks early cracking, letting high-impact parts bend safely.
- Absorb Heavy Shock: Elite ductility combined with steady yield limits handles sudden dynamic forces easily.
- Thin Wall Flow: Fluid melt fills massive complex dies perfectly, cutting foundry reject scrap waste.
Magnesium AM50 cast alloy is chiefly used in several components in the automobile sector. The following are some of them:
- Brackets
- Seat frames
- Steering wheels
- Instrument panels
- physical properties
- chemical composition
- mechanical properties
Here is the typical chemical composition of Magnesium AM50:
| Element | Content (wt%) | Notes |
| Magnesium (Mg) | Balance | Base metal |
| Aluminum (Al) | 4.0 – 5.0 | Primary alloying element |
| Manganese (Mn) | 0.2 min | Improves corrosion resistance |
| Zinc (Zn) | 0.3 max | Improves strength and corrosion resistance |
| Copper (Cu) | 0.05 max | Impurity limit |
| Iron (Fe) | 0.005 max | Impurity limit |
| Nickel (Ni) | 0.005 max | Impurity limit |
| Silicon (Si) | 0.02 max | Impurity limit |
Here are the typical mechanical properties of Magnesium AM50:
| roperty | Value | Unit | Notes |
| Ultimate Tensile Strength | 200 – 250 | MPa | Depends on processing and temper |
| Yield Strength | 120 – 150 | MPa | 0.2% offset |
| Elongation | 5 – 10 | % | At room temperature |
| Hardness (Brinell) | 60 – 70 | HB | Typical value |
| Shear Strength | 120 – 160 | MPa | Approximate |
| Fatigue Strength | 80 – 100 | MPa | 10^7 cycles, room temperature |

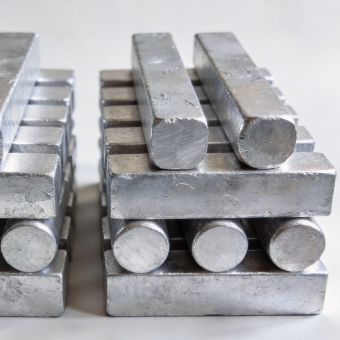

Magnesium billet AM50
Cut extrusion cracking; these clean AM50 logs flow smoothly, delivering elite impact toughness.
Magnesium bar AM50
These high-ductility AM50 rounds hold together beautifully, absorbing heavy dynamic shock easily.

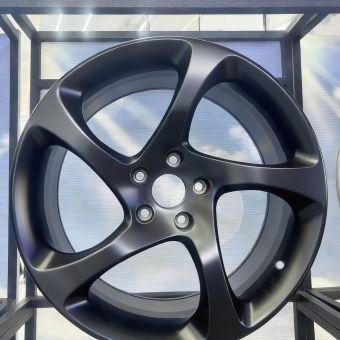

Magnesium alloy wheel
Ditch heavy steel; these ultra-light AM50 rims shave unsprung mass while absorbing harsh track slams.

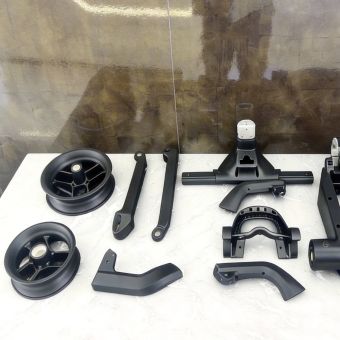

Magnesium alloy parts
These rugged custom shapes shed deadweight while surviving brutal impacts.
Features of Grade
Balanced 4.5% Aluminum
Blocks early cracking and lets high-impact parts bend safely without splitting.
Elite Dynamic Ductility
High-yield strength combined with steady elasticity handles sudden dynamic forces easily.
High Impact Absorption
Safely absorbs heavy, sudden shock energy, protecting critical adjacent structural gears.
Fluid Thin-Wall Casting
Flows beautifully into complex massive dies to drastically cut foundry reject scrap waste.
Tailored to Your Blueprints
We custom-make and precisely saw every AM50 batch based on your exact engineering drawings.
Millimeter-Level Thinness
We achieve extreme millimeter-level thin walls to maximize structural weight savings.
Traceable Quality Records
Every order includes traceable chemical test sheets and strict compliance with B2B ASTM standards.
Rustproof Global Delivery
Vacuum-sealed and crated in heavy-duty wooden boxes to completely shut out harsh marine moisture.
Custom Magnesium Alloy Grades, Shapes, and Sizes Supplier
10 years of magnesium alloy product development and production supplier, we can customize the products according to the customer's performance needs or product application area needs. Magnesium plate we have provided customers with large size plate of 2400*7500mm, which meets the needs of many customers with large plate. At the same time, we can also provide etched plates, which also solves the needs of many customers in the printing industry. Same We can also provide seamless tubes, high performance plates and other products to military customers. You You Same Same You Customers' high quality demand is the driving force for our R&D and production, if you have any demand about magnesium alloy, please contact us: Email: sales@mijimg.com
whatsapp:+86 13761190361
How is magnesium alloy surface treated?
For the surface of magnesium alloy material is easy to deteriorate the problem, magnesium alloy products will be finalized after the final surface treatment, at present commonly used (phosphating, passivation), spraying, vacuum transfer printing, anodic oxidation, micro-arc oxidation and other treatment methods. Magnesium alloy micro-arc oxidation treatment is currently a common surface treatment in the rail transit industry. Our company has the capacity of micro-arc oxidation treatment of ultra-long profiles (>5 meters) and acid-resistant micro-arc oxidation treatment. Widely used in military, aerospace, machinery, electronics and rail transportation and other fields.
Miji Magnesium Delivery
The factory has a large number of AZ31B, AZ80A, AZ91D and ZK60A grades in stock, the delivery time can be controlled by Delivery time: 3-10days, the general sending is fumigated wooden box packaging, which can effectively prevent the product from deformation and scratches.
Miji magnesium can send FedEx/UPS/DHL courier, also can be transported by sea, to help you save the trouble of transportation.
At present, we can do EXW, FOB, CIF and DDU services according to your needs, one-stop solution for all your import problems.
Miji magnesium Service
After the customer receives the goods, please check the quantity and tolerance of the product, the surface and other product details in a timely manner, if there is a quality problem, please notify us within 30 days, we will make up the product to send, return and exchange and other after-sales service. At the same time there are 7/24 hours customer service online to answer any technical questions and sales problems you have.
Applicantion Of Magnesium AM50
Automotive Components
Trusted for steering wheel cores, seat frames, and instrument panels that bend and absorb severe crash energy without shattering.
Aircraft Structural Parts
Ideal for lightweight structural brackets, instrument housings, and cabin frames requiring exceptional ductility under high vibration.
3C Electronic Enclosures
Perfect for ultra-thin, impact-resistant protective outer shells and internal frames for laptops, tablets, and smartphones.
FAQ
Q: What forms and shapes of AM50 can you supply?
A: We supply AM50 magnesium alloy in various custom forms, including plates, bars, tubes, and complex profiles. Whatever shape your project needs, we can make it happen based on your drawings.
Q: Do you have a strict Minimum Order Quantity (MOQ) for AM50?
A: Not at all. We support both large-scale industrial orders and small testing batches. Just let us know your project size, and we will tailor a flexible manufacturing solution for you.
Q: How thin can you make your AM50 magnesium components?
A: We can achieve extreme millimeter-level wall thickness. Our precision processing ensures that even at ultra-thin specifications, the structural integrity remains flawless without any micro-cracking.
Q: Do you provide quality certifications and material traceability?
A: Yes, 100%. Every single batch of AM50 we ship comes with complete traceable chemical testing sheets and certificates that comply fully with ASTM B2B standards. Your quality assurance is fully covered.
Q: How do you protect the magnesium from rusting during long ocean freight?
A: We use heavy-duty, vacuum-sealed rustproof packaging. All materials are securely packed in sturdy wooden boxes to completely block out moisture and sea air, ensuring they arrive at your factory clean and ready to use.
