Magnesium AM60B
Product Overview & Key Advantages
Why Veterans Sourcing Automotive Metals Specify AM60B:
Chasing raw tensile numbers on a spec sheet leads to broken parts in crash tests. When real dynamic shock hits, you need an alloy that bends without fracturing.
- Survive Sudden Shock: Balanced 6% aluminum blocks brittle cracking, letting structural parts bend safely.
- Redirect Crash Forces: High yield mixed with elite ductility absorbs heavy impact energy easily.
- Stop Mold Scrap Waste: Flowing beautifully into thin walls cuts reject rates for complex massive shapes.
- Physical Properties
- Chemical Composition
- Mechanical Properties
| Property | Value | Unit | Notes |
| Density | 1.80 | g/cc | Or g/cm³ |
| Melting Point | 550 – 640 | C | Solidus to liquidus range |
| Thermal Conductivity | 85 | W/m-K | Reliable heat dissipation |
| Electrical Conductivity | 7.5 | MS/m | Standard conductivity |
| Electrical Resistivity | 0.133 | uOhm-m | Or $\mu\Omega\cdot\text{m}$ |
| Coefficient of Thermal Expansion | 26.5 | ppm/C | Or $\mu\text{m}/(\text{m}\cdot^\circ\text{C})$ |
| Specific Heat Capacity | 1020 | J/kg-K | Continuous thermal spec |
| Elastic Modulus | 45 | GPa | Young’s Modulus |
| Poisson’s Ratio | 0.35 | — | Dimensionless constant |
Here is a table displaying the chemical composition of AM60Bmagnesium alloy
| Element | Content (wt. %) | Standard Sourcing Spec |
| Magnesium (Mg) | Balance | Base Metal (Remaining %) |
| Aluminum (Al) | 5.8 – 6.5% | Nominal 6.0% |
| Manganese (Mn) | 0.15 – 0.40% | Controlling intermetallics |
| Silicon (Si) | 0.08% max | Strict impurity limit |
| Copper (Cu) | 0.02% max | Strict impurity limit |
| Iron (Fe) | 0.005% max | Low-iron high purity spec |
| Zinc (Zn) | 0.05% max | Impurity ceiling |
| Nickel (Ni) | 0.001% max | Ultra-low corrosion control |
Here is a table showcasing the mechanical properties of AM60B magnesium alloy:
| Property | Value | Unit | Engineering Notes |
| Tensile Strength | 230 – 250 | MPa | Ultimate tensile strength (UTS) |
| Yield Strength | 150 – 180 | MPa | 0.2% Proof stress |
| Elongation | 5 – 10 | % | Ductility range |
| Brinell Hardness | 50 – 70 | HB | Standard hardness check |
| Compressive Yield Strength | 150 – 180 | MPa | High compression resistance |
| Shear Strength | 120 – 140 | MPa | Reliable shear limit |
| Modulus of Elasticity | 45 | GPa | Young’s Modulus |

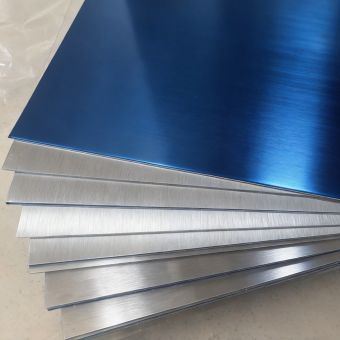

Forget brittle plates; AM60B slabs deform safely under severe impact without cracking.

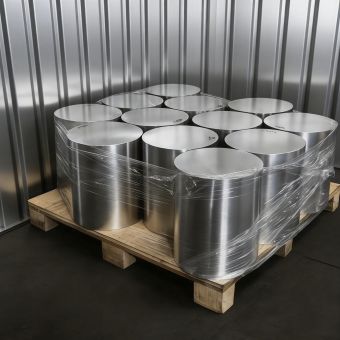

These high-ductility AM60B rounds hold together beautifully, absorbing heavy loads instead of snapping.

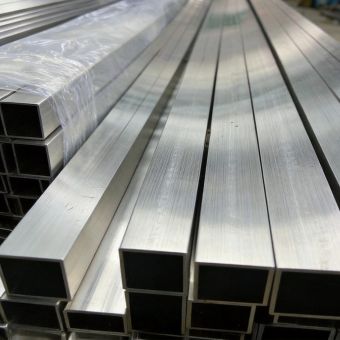

Ditching standard tubing? Tough AM60B conduits flex smoothly under dynamic pressure to stop burst splits.

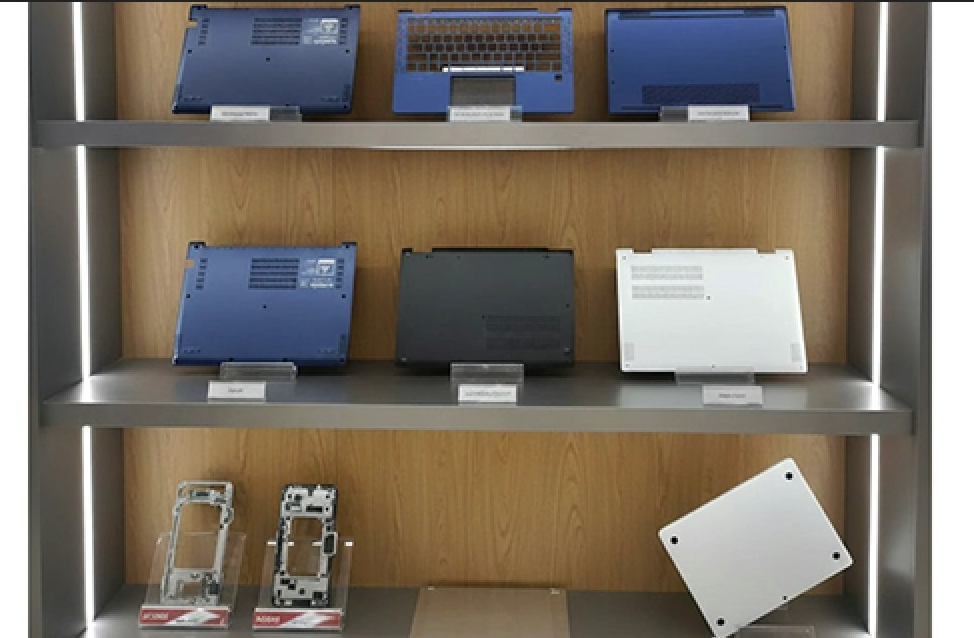

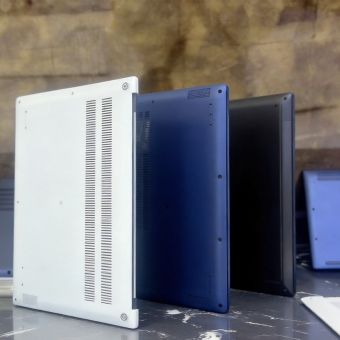

Rugged AM60B frames absorb harsh concrete slams, protecting screens flawlessly.
Features of Grade
Optimizes internal metal grain alignment to fully block potential brittle cracking lines.
High yield strength mixed with premium elasticity lets critical structural components bend safely.
Absorbs heavy, sudden crash forces easily, protecting delicate adjacent system gear.
Flows beautifully into intricate geometric shapes to slash scrap rates for complex parts.
We saw, cut, and deliver customized AM60B alloy shapes according to your precise design specs.
Every batch includes traceable test sheets and strict compliance with global B2B ASTM standards.
Vacuum-sealed and wooden-crated securely to completely shut out harsh maritime transport rust.
We handle international compliance and ship production-ready metals straight to your facility.

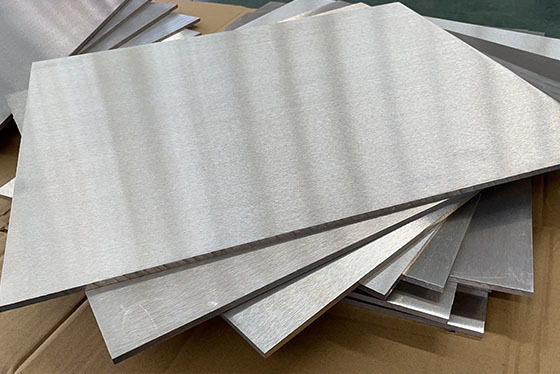

Custom Magnesium Alloy Grades, Shapes, and Sizes Supplier
10 years of magnesium alloy product development and production supplier, we can customize the products according to the customer's performance needs or product application area needs. Magnesium plate we have provided customers with large size plate of 2400*7500mm, which meets the needs of many customers with large plate. At the same time, we can also provide etched plates, which also solves the needs of many customers in the printing industry. Same We can also provide seamless tubes, high performance plates and other products to military customers. You You Same Same You Customers' high quality demand is the driving force for our R&D and production, if you have any demand about magnesium alloy, please contact us: Email: sales@mijimg.com
whatsapp:+86 13761190361

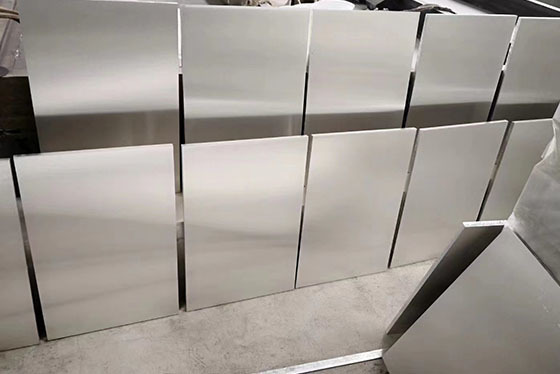

How is magnesium alloy surface treated?
For the surface of magnesium alloy material is easy to deteriorate the problem, magnesium alloy products will be finalized after the final surface treatment, at present commonly used (phosphating, passivation), spraying, vacuum transfer printing, anodic oxidation, micro-arc oxidation and other treatment methods. Magnesium alloy micro-arc oxidation treatment is currently a common surface treatment in the rail transit industry. Our company has the capacity of micro-arc oxidation treatment of ultra-long profiles (>5 meters) and acid-resistant micro-arc oxidation treatment. Widely used in military, aerospace, machinery, electronics and rail transportation and other fields.
Miji Magnesium Delivery
The factory has a large number of AZ31B, AZ80A, AZ91D and ZK60A grades in stock, the delivery time can be controlled by Delivery time: 3-10days, the general sending is fumigated wooden box packaging, which can effectively prevent the product from deformation and scratches.
Miji magnesium can send FedEx/UPS/DHL courier, also can be transported by sea, to help you save the trouble of transportation.
At present, we can do EXW, FOB, CIF and DDU services according to your needs, one-stop solution for all your import problems.
Miji magnesium Service
After the customer receives the goods, please check the quantity and tolerance of the product, the surface and other product details in a timely manner, if there is a quality problem, please notify us within 30 days, we will make up the product to send, return and exchange and other after-sales service. At the same time there are 7/24 hours customer service online to answer any technical questions and sales problems you have.

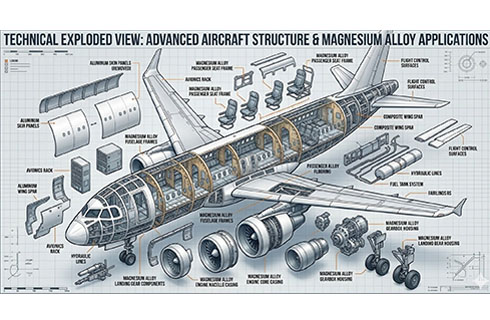

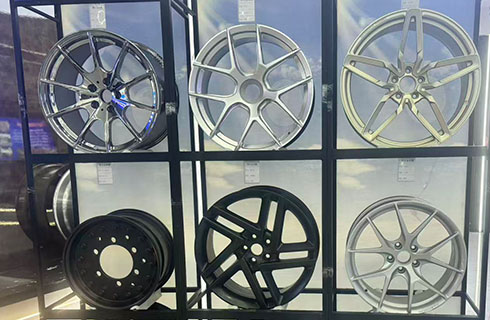

Applicantion Of Magnesium AM60B
