Magnesium AZ61A
Why Structural Engineers Specify AZ61A:
Stop guessing if your extrusions will hold the load. AZ61A brings a balanced, high-strength profile that performs under consistent mechanical stress.
- Elite Load Bearing: The 6% aluminum content offers a robust yield limit, preventing structural sagging.
- Weldability First: Optimized chemistry ensures clean, crack-free joints for complex frame assemblies.
- Precision Extrusion: Smooth grain structure flows through complex dies, ensuring tight dimensional tolerances.
AZ61A is highly regarded for its weldability. By maintaining strict control over the manganese-to-iron ratio (keeping iron below 0.005%), we ensure that the heat-affected zone during welding remains strong and corrosion-resistant.
- physical properties
- chemical composition
- mechanical properties
| Property | Value | Unit | Notes |
| Density | 1.81 | g/cc | Lightweight alloy |
| Melting Point | 595 – 640 | C | Alloy dependent |
| Thermal Conductivity | 96 | W/m-K | At 25 C |
| Specific Heat | 1.02 | J/g-K | At 25 C |
| Young’s Modulus | 45 | GPa | Elastic modulus |
| Poisson’s Ratio | 0.35 | dimensionless | Typical value |
| Electrical Resistivity | 43 | nOhm-m | Approximate |
| Coefficient of Thermal Expansion | 26 | ppm/C | At 25 – 100 C |
Here is the typical chemical composition of Magnesium AZ61A:
| Element | Content (wt%) | Notes |
| Aluminum (Al) | 5.5 – 7.0 | Main strengthening element |
| Zinc (Zn) | 0.8 – 1.5 | Improves strength & corrosion resistance |
| Manganese (Mn) | 0.2 – 0.5 | Grain refinement & corrosion resistance |
| Magnesium (Mg) | Balance | Base metal |
| Iron (Fe) | 0.005 max | Impurity limit |
| Copper (Cu) | 0.005 max | Impurity limit |
| Nickel (Ni) | 0.005 max | Impurity limit |
| Silicon (Si) | 0.005 max | Impurity limit |
Here are the typical mechanical properties of Magnesium AZ61A:
| Property | Value | Unit | Notes |
| Ultimate Tensile Strength | 250 – 290 | MPa | Depends on temper and processing |
| Yield Strength | 150 – 190 | MPa | 0.2% offset |
| Elongation | 8 – 12 | % | At room temperature |
| Hardness (Brinell) | 60 – 70 | HB | Typical value |
| Shear Strength | 140 – 160 | MPa | Approximate |
| Fatigue Strength | 90 – 110 | MPa | 10^7 cycles, room temperature |

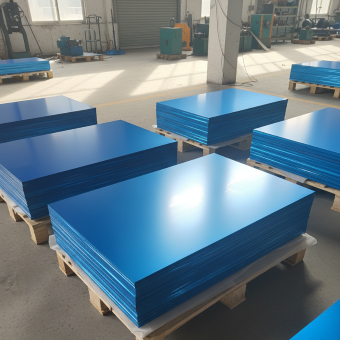

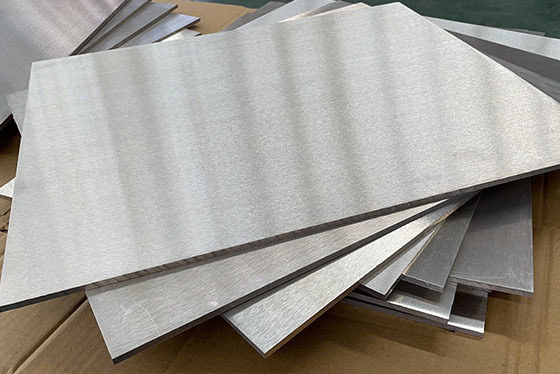

Need rigid paneling without the steel heft? These tough AZ61A sheets handle heavy loads without buckling.

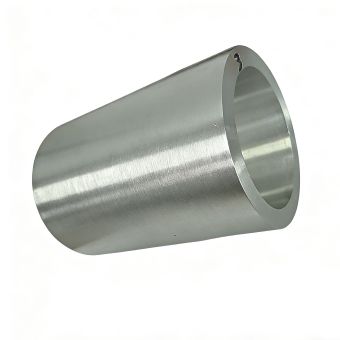

These extruded AZ61A sleeves drop component deadweight while smoothly isolating heavy structural loads.

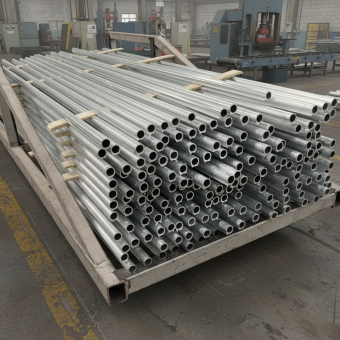

From micro-tubes to massive custom bores, we pull AZ61A cylinders to your exact wall specs.

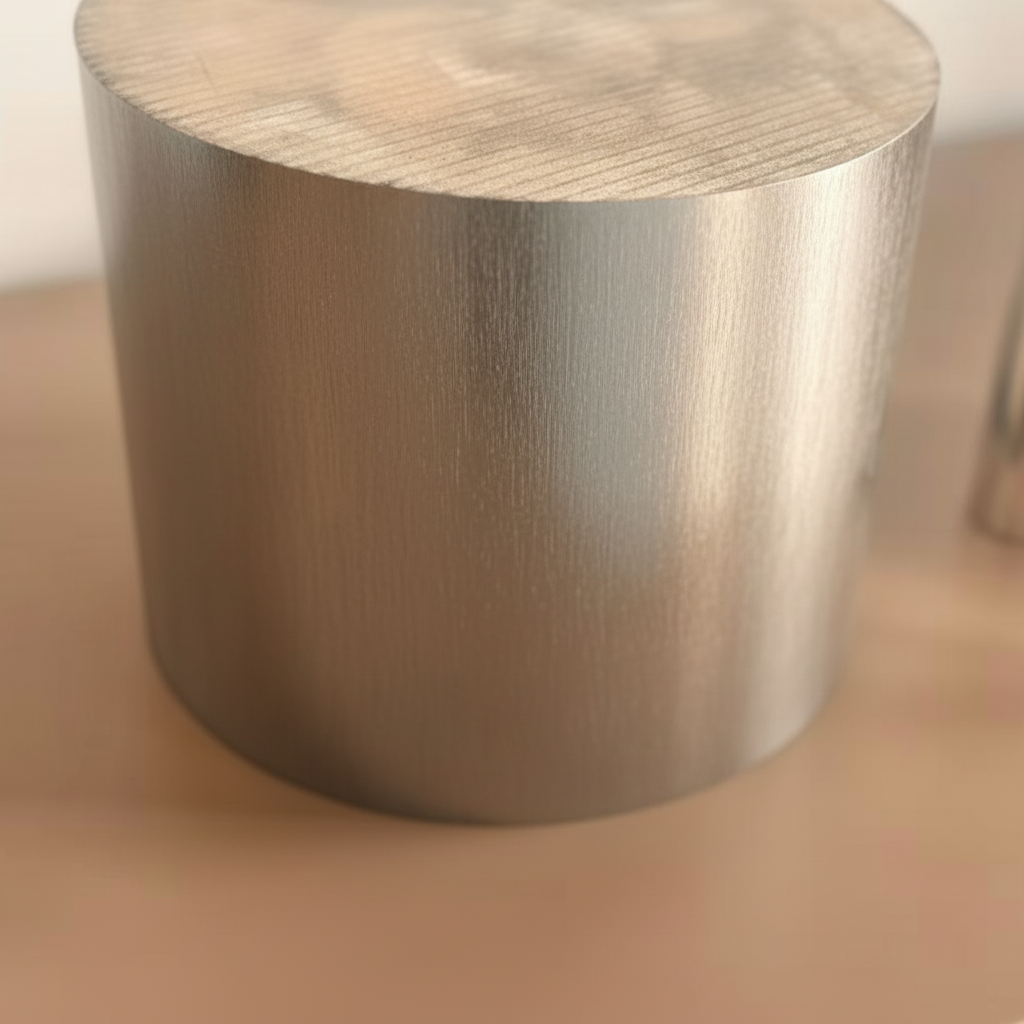

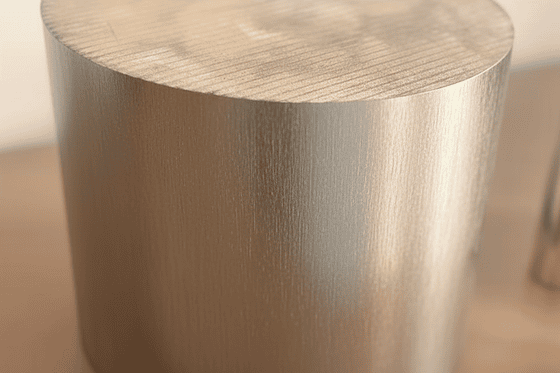

Big rounds or ultra-thin rods—we extrude AZ61A bar stock in any custom length or diameter you need.
Features of Grade
High yield strength prevents structural sagging under heavy load.
Ensures clean, crack-free joint welding for complex frame structures.
Flows perfectly through complex dies for tight dimensional tolerances.
High strength-to-weight ratio to easily replace heavy steel parts.
Custom-cut and processed based on your exact engineering drawings.
Extreme millimeter-level thin walls to maximize structural weight savings.
Full ASTM compliance with traceable chemical test reports included.
Vacuum-sealed in heavy-duty wooden boxes to prevent marine moisture.
Custom AZ61A Magnesium Alloy: Any Size or Shape Shipped Globally
Elite Load Bearing: The 6% aluminum content offers a robust yield limit, preventing structural sagging under high stress.
Weldability First: Optimized chemistry ensures exceptionally clean, crack-free joints for complex frame assemblies.
No Rigid Sizing Limits: We cut, mill, and saw every batch of AZ61A to match your precise architectural dimensions.
Incredible Strength-to-Weight: Delivers severe structural weight savings while maintaining extremely high engineering integrity.
Precision Machine-Ready AZ61A: Bespoke Specifications Delivered Worldwide
Millimeter-Level Thinness: We achieve extreme millimeter-level thin walls to maximize weight savings without any cracking.
Precision Extrusion Flow: Flows smoothly through complex dies, ensuring tight dimensional tolerances for profiles and shapes.
Traceable Quality Records: Every shipment comes with standard traceable chemical testing sheets and full ASTM compliance.
Rust-Free Vacuum Boxing: We vacuum-seal and crate your cargo in heavy-duty wood boxes to completely block maritime moisture.
Applicantion Of Magnesium AZ61A
