| Property | Value | Unit | Notes |
|---|---|---|---|
| Density | 1.78 | g/cm³ | Lightweight alloy |
| Melting Point | 550–650 | °C | Alloy dependent |
| Thermal Conductivity | 110–120 | W/m·K | At 25°C |
| Specific Heat | 1.02 | J/g·K | At 25°C |
| Electrical Resistivity | 43 | nΩ·m | Approximate |
| Coefficient of Thermal Expansion | 26 | µm/m·K | 25–100°C |
| Young’s Modulus | 44 | GPa | Elastic modulus |
Magnesium EV31A
EV31A magnesium is a magnesium alloy. Cited properties are appropriate for the T6 temper. To achieve this temper, the metal is solution heat-treated and artificially aged until it meets standard mechanical property requirements. EV31A is the ASTM designation for this material. M12310 is the UNS number.
It has a very high melting temperature and a moderately low ductility among magnesium alloys.
Miji Magnesium focuses on magnesium alloy materials and custom non-ferrous metal solutions. We support buyers with material selection, custom size cutting, CNC machining, inspection documents, export packing and international shipment. For EV31A magnesium alloy requirements, please send grade, form, dimensions, quantity, tolerance, drawing and destination country to sales@mijimg.com.
- physical properties
- chemical composition
- mechanical properties
Here is the typical chemical composition of Magnesium EV31A:
| Property | Value | Unit | Notes |
| Magnesium (Mg) | Balance | wt% | Base metal |
| Neodymium (Nd) | 2.6–3.1 | wt% | Main alloying element |
| Gadolinium (Gd) | 1.0–1.7 | wt% | Heavy rare earth |
| Zinc (Zn) | 0.2–0.5 | wt% | Grain refinement helper |
| Zirconium (Zr) | 0.4–1.0 | wt% | Grain refiner |
| Copper (Cu) | ≤ 0.03 | wt% | Impurity limit |
| Nickel (Ni) | ≤ 0.005 | wt% | Impurity limit |
| Iron (Fe) | ≤ 0.01 | wt% | Impurity limit |
Here are the typical mechanical properties of Magnesium EV31A:
| Property | Value | Unit | Notes |
| Tensile Strength | 270–310 | MPa | Ultimate tensile strength ($R_m$) |
| Yield Strength | 170–210 | MPa | 0.2% Proof stress ($R_{p0.2}$) |
| Elongation | 4–8 | % | In 50mm gauge length |
| Compressive Yield Strength | 170–200 | MPa | At 0.2% offset |
| Hardness | 80–90 | HB | Brinell hardness |
| Fatigue Strength | 95–105 | MPa | At $5 \times 10^7$ cycles |
| Poisson’s Ratio | 0.27 | – | Elastic property |
Magnesium plate EV31A
EV31A is a high-performance aircraft-grade magnesium plate designed for extreme heat and heavy loads.

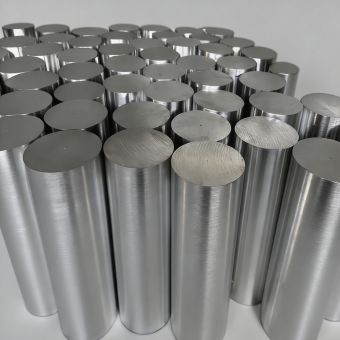

Magnesium bar EV31A
EV31A Magnesium Rod is a high-performance magnesium alloy composed of Mg with additions of neodymium (Nd) and zinc (Zn), engineered to deliver outstanding strength retention at elevated temperatures and improved corrosion resistance.

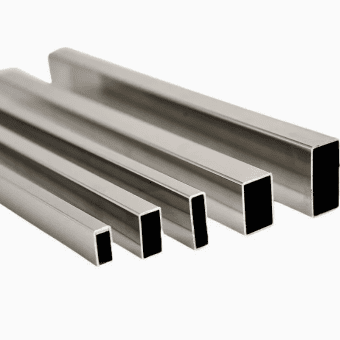

Magnesium tube EV31A
EV31A magnesium tubes offer exceptional creep resistance and high strength for high-temp motorsport parts.

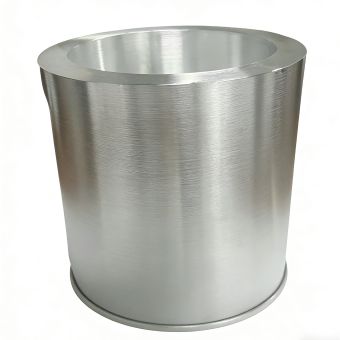

Magnesium Bushing EV31A
Premium EV31A bushings absorb harsh vibrations and thrive under intense, high-temperature friction.
Features of Grade
High-Temp Structural Stability
Features a very high melting temperature, staying strong under demanding thermal stress.
Premium T6 Heat Treatment
Solution heat-treated and artificially aged to hit exact mechanical property benchmarks.
Precision CNC Machine-Ready
Cuts flawlessly to tight tolerances, making it perfect for complex, thin-walled components.
Custom Architectural Cuts
Forget restrictive stock catalogs; we saw, cut, and mill EV31A to your exact blueprints.
Verified ASTM Compliance
Fully certified ASTM EV31A (UNS M12310) material with traceable documentation for every order.
Aerospace & Defense Focus
Ideal for extreme environments requiring low ductility and high structural integrity globally.
Moisture-Proof Export Packs
Every shipment is vacuum-sealed and crated securely to block maritime rust and transit damage.
Direct Worldwide Delivery
We handle customs clearance and ship ready-to-use EV31A directly to your warehouse floor.
Custom Magnesium Alloy Grades, Shapes, and Sizes Supplier
10 years of magnesium alloy product development and production supplier, we can customize the products according to the customer's performance needs or product application area needs. Magnesium plate we have provided customers with large size plate of 2400*7500mm, which meets the needs of many customers with large plate. At the same time, we can also provide etched plates, which also solves the needs of many customers in the printing industry. Same We can also provide seamless tubes, high performance plates and other products to military customers. You You Same Same You Customers' high quality demand is the driving force for our R&D and production, if you have any demand about magnesium alloy, please contact us: Email: sales@mijimg.com
whatsapp:+86 13761190361
How is magnesium alloy surface treated?
For the surface of magnesium alloy material is easy to deteriorate the problem, magnesium alloy products will be finalized after the final surface treatment, at present commonly used (phosphating, passivation), spraying, vacuum transfer printing, anodic oxidation, micro-arc oxidation and other treatment methods. Magnesium alloy micro-arc oxidation treatment is currently a common surface treatment in the rail transit industry. Our company has the capacity of micro-arc oxidation treatment of ultra-long profiles (>5 meters) and acid-resistant micro-arc oxidation treatment. Widely used in military, aerospace, machinery, electronics and rail transportation and other fields.
Miji Magnesium Delivery
The factory has a large number of AZ31B, AZ80A, AZ91D and ZK60A grades in stock, the delivery time can be controlled by Delivery time: 3-10days, the general sending is fumigated wooden box packaging, which can effectively prevent the product from deformation and scratches.
Miji magnesium can send FedEx/UPS/DHL courier, also can be transported by sea, to help you save the trouble of transportation.
At present, we can do EXW, FOB, CIF and DDU services according to your needs, one-stop solution for all your import problems.
Miji magnesium Service
After the customer receives the goods, please check the quantity and tolerance of the product, the surface and other product details in a timely manner, if there is a quality problem, please notify us within 30 days, we will make up the product to send, return and exchange and other after-sales service. At the same time there are 7/24 hours customer service online to answer any technical questions and sales problems you have.
Applicantion Of Magnesium EV31A
Aerospace Structural Components
Perfect for aircraft skin panels, internal frames, and high-strength jet brackets that endure constant thermomechanical fatigue.
Defense & Military Systems
Extensively used in tactical missile casings, rocket sections, and specialized armored vehicle components reducing heavy weight payload.
Avionics & Laser Housings
Provides supreme dimensional stability and excellent heat dissipation for tracking systems and sensitive radar enclosures.
FAQ
Q: What makes EV31A magnesium stand out?
A: It offers exceptional high-temperature strength and thermal stability after T6 heat treatment.
Q: Is EV31A suitable for aerospace use?
A: Yes, its low ductility and high structural integrity make it ideal for extreme defense and flight gear.
Q: How does EV31A behave during CNC machining?
A: It cuts cleanly to ultra-tight tolerances, perfectly matching complex and thin-walled blueprints.
Q: Can I order custom sizes for EV31A?
A: Absolutely. We provide bespoke size cutting and custom-milled shapes based on your engineering drawings.
