Magnesium Alloy Melting: Step-by-Step Process Guide

Producing a clean magnesium alloy melt is a continuous process rather than a single furnace operation. Charge composition, moisture, temperature, surface protection, flux condition, refining, and transfer practices all influence the quality of the final metal.

A controlled Magnesium Alloy Melting workflow begins before the charge enters the crucible and continues until the protected melt reaches the mold. Each stage must prevent oxidation, water contact, hydrogen pickup, oxide entrainment, and nonmetallic contamination.

Stage 1: Confirm the Alloy and Prepare the Charge

The first step is to verify the alloy grade and calculate the charge composition. Virgin metal, alloying additions, and approved return material must be identified and kept separate from other metals.

The supplied technical material describes a referenced practice in which return material generally did not exceed approximately 50–55% of the total charge. It also notes that iron may increase by approximately 0.08% after each remelting cycle, while silicon remains comparatively stable. In that practice, iron was normally controlled below approximately 0.2% during charge preparation.

• Confirm alloy identity.
• Check iron and silicon content.
• Remove material contaminated by oxide, flux, oil, moisture, or foreign metals.
• Keep return metal separated by alloy and process history.

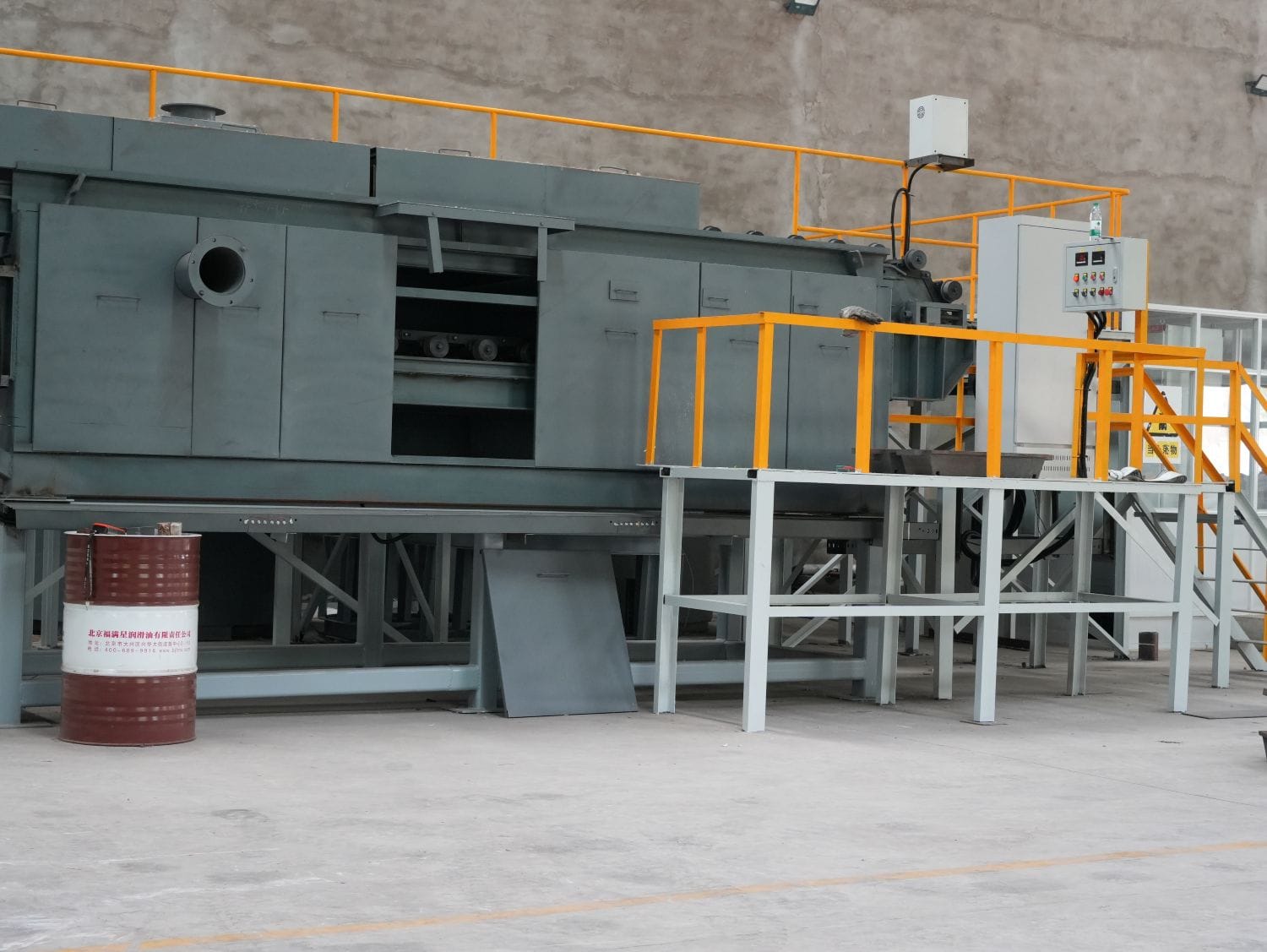

Stage 2: Select Compatible Furnace and Crucible Materials

The supplied material warns against melting magnesium alloys in clay or clay-graphite crucibles. Silica can react with aluminum and magnesium, and the reduced silicon can contaminate the melt.

1. Inspect the crucible for cracks and residue.
2. Remove loose oxide and flux deposits.
3. Confirm material compatibility.
4. Dry and preheat the crucible.
5. Inspect transfer ladles and skimming tools.

Stage 3: Eliminate Moisture Before Heating

Mg + H₂O → MgO + H₂↑ + heat
Mg + 2H₂O → Mg(OH)₂ + H₂↑ + heat

The magnesium-water reaction becomes faster as temperature rises. Molten magnesium in contact with water can generate oxide, hydrogen, heat, rapid vapor expansion, burning, and severe splashing.

Moisture may enter through damp charge, return scrap, hygroscopic flux, condensation, porous tools, refractory, water vapor in the atmosphere, or improperly stored alloying additions. Drying must be verified rather than assumed.

Stage 4: Establish Protection Before Full Melting

Magnesium forms a porous oxide layer that cannot stop continued oxidation. The compactness coefficient of MgO is approximately 0.79, compared with approximately 1.28 for Al₂O₃.

A controlled gas atmosphere, covering flux, or qualified combination must protect the surface during melting, alloying, refining, slag removal, holding, transfer, and pouring.

Stage 5: Raise Temperature Without Unnecessary Overheating

Magnesium oxidation increases above approximately 500°C and accelerates sharply above the melting point of about 650°C. Because MgO is thermally insulating, heat may accumulate at the reaction interface and accelerate oxidation further.

• Reach process temperature efficiently.
• Avoid excessive superheat.
• Minimize elevated-temperature holding.
• Maintain even furnace conditions.
• Coordinate alloying and refining to avoid repeated reheating.

Stage 6: Maintain a Stable Protective Atmosphere

Inert gases

Argon and helium isolate the melt from oxygen but do not form a protective film or completely prevent magnesium evaporation.

Carbon dioxide

Mg + ½CO₂ → MgO + ½C

Dry, pure CO₂ can form a MgO-carbon-containing film. Protection decreases with excessive temperature or contamination by air and water vapor.

Sulfur-containing gases

The supplied material describes SO₂ and SF₆ as historical protective gases. Their effectiveness depends on concentration, temperature, dryness, alloy composition, furnace sealing, and distribution. They also present health, corrosion, environmental, and process-safety concerns.

Stage 7: Add Alloying Elements Without Breaking the Cover

Alloying additions should be clean, dry, correctly identified, and introduced with minimum disturbance. Poor practice can break the protective film, draw air into the metal, introduce moisture, create local overheating, and increase oxide formation.

Stage 8: Use Flux for Covering and Refining

Covering

Molten flux forms a continuous surface layer that isolates the melt from air, restricts reactions with oxygen and water, and can suppress local burning.

Refining

Flux wets and adsorbs oxide and other nonmetallic inclusions. Density differences help transfer the inclusions from magnesium into the flux.

Stage 9: Understand the Flux Components

Magnesium chloride

MgCl₂ wets oxide films and transfers particles into the flux:

MgCl₂ + 5MgO → MgCl₂·5MgO

Potassium chloride

KCl reduces melting point, surface tension, viscosity, and MgCl₂ vapor pressure. It also suppresses hydrolysis during dehydration.

Barium chloride

BaCl₂ increases flux density and viscosity and can improve flux-metal separation.

Calcium fluoride

CaF₂ + MgCl₂ → MgF₂ + CaCl₂

CaF₂ can modify density, viscosity, stability, and refining behavior. The MgF₂ produced can combine with MgO.

Stage 10: Verify Flux Dryness

MgCl₂ + H₂O → MgO + 2HCl

Wet flux may cause oxide formation, corrosive reaction products, poor covering, reduced refining efficiency, sparking, splashing, and hydrogen generation. Store flux in sealed, dry containers and control dehydration and handling.

Stage 11: Refine Without Excessive Turbulence

1. Use the correct quantity of dry flux.
2. Create adequate but limited flux-metal contact.
3. Avoid splashing and deep vortices.
4. Allow inclusions to transfer and separate.
5. Remove residue without carrying away clean metal.
6. Restore surface protection immediately.

Stage 12: Minimize Holding Time

During holding, monitor melt temperature, surface condition, protective-gas supply, gas distribution, flux coverage, furnace leakage, and signs of oxidation. Unnecessary holding increases opportunities for oxidation, evaporation, gas pickup, and contamination.

Stage 13: Remove Dross Carefully

Use dry, preheated tools and remove only contaminated surface material. Avoid deep penetration into clean metal, limit the time the surface remains open, and restore protection immediately.

Stage 14: Transfer with Minimum Disturbance

1. Confirm the ladle is clean, dry, and preheated.
2. Prepare the receiving equipment.
3. Maintain protection over the melt.
4. Use a short, controlled transfer path.
5. Minimize fall height, splashing, and repeated pouring.

Stage 15: Pour Smoothly

Use dry receiving tools and molds, stable temperature, low-turbulence flow, continuous protection where required, minimum transfer distance, and controlled slag exclusion.

Production Workflow Checklist

Conclusion

Magnesium alloy melting should be treated as a connected workflow. Clean metal cannot be achieved by refining alone if the charge is contaminated, the flux is wet, the melt is overheated, or the protective layer repeatedly fails.

Verify the charge, dry every melt-contact material, establish protection early, control temperature, add alloys carefully, use dry flux, refine without excessive turbulence, and maintain control through transfer and pouring.

Technical and safety note: The numerical ranges and process descriptions in this article were translated and reorganized from the previously supplied technical pages. Some historical practices involve toxic, corrosive, environmentally restricted, or highly reactive substances. Production methods must comply with current regulations, supplier safety data, equipment requirements, and qualified metallurgical supervision.
